BW-2500-16

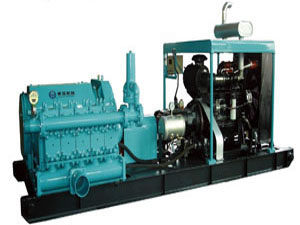

BW-2500/16 MUD POMPA

Descrizione:

Parametro



Modello	BW2500 / 16
Tipo	Pompa a pistone alternativo a semplice effetto a cinque cilindri
Liner Dia. (Mm)	& phi; 150
Corsa (mm)	150
Velocità pompa (min-1)	190	148	115	90	70	55	42	33
Sostituzione di scarico (1 / min)	2500	1950	1520	1180	925	720	560	430
Pressione nominale (MPa)	4.8	6	8	10.2	13	16	16	16
Modello di motore	Cumins motore diesel 6LTAA8.9-C360
Potenza (KW)	264
Tubo di aspirazione Dia. (mm)	204
Scarico del tubo Dia. (mm)	100
Dimensione (L e volte; W & volte; H)	5456 e volte, 2550 e volte; 2.450 millimetri (con motore diesel)
Il peso	10000 (con motore diesel)
