BW-1500-1512

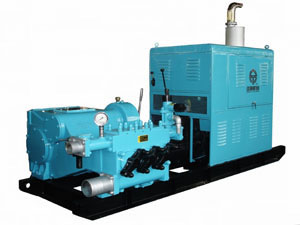

BW-1500/12 pompa di fango

Descrizione:

Parametro



Modello	BW -1500/12
Tipo	Orizzontale. triplex, pompa a pistoni reciprocità semplice effetto
Alesaggio cilindro (mm)	& Phi; 150
Corsa (mm)	150
Spostamento	6	5	4	3	2	1
Velocità pompa (min-1)	195	145	107	72	45	27
Scarico (1 / min)	1500	1100	820	550	340	200
Pressione (Mpa)	5.8	7.5	10	12	12	12
Forza motrice (KW)	Motore diesel 179
Tubo di aspirazione diam. (mm)	& Phi; 152
Scarico del tubo dia. (mm)	& Phi; 76
Dimensione del profilo (mm)	3900 e volte, 1800 e 1700 volte;
Peso (kg)	5000
